Manufacturer Code: 3665315
Image is for reference only. Actual product may vary.
For larger orders, 1 item(s) available with a 1-2 week(s) lead time.

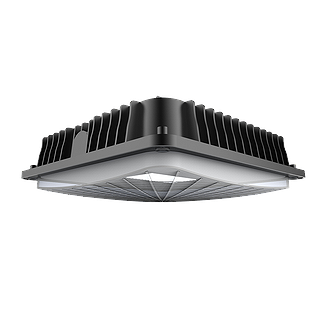

Canopy Fixture LED SCCT 120-347V
| Kelvin | Selectable 3000/4000/5000 |
|---|---|
| Volts | 120-347 |
| Watts | 40 |
| Lumens | 5200 |
| Colour Rendering Index (CRI) | 70+ |
| Average Life in Hours | 50000 |
| Temperature Range | -40 to 40C (-40 to 104F) |
| Body Colour | BZ – Bronze |
| Manufacturer Code | 3665315 |
| Damp Location Rated | Yes |
| IP Rating | IP65 |
| Wet Location Rated | Yes |
| Case Dimensions Inches | 20" x 11" x 11" |
| Case Quantity | 5 |
| Ambient temp.(°c) | -40 ~ +40 |
|---|---|
| Ambient temp. (°c) | -40c ~ +40c |
| Color temp (k) | 30-40-50 |
| Cri | 70 |
| Housing color | Dark bronze |
| Lens | Pc clear |
| Rated life (hour) | 50000 |
| Optics/distribution | Type v |
| Optics/distribution. | Type v |
| Voltage | 120-347 |
| Voltage (v) | 120-347 |
| Watts (w) | 40 |
| Watts | 40 |
| Carton weight(lb) | 25 |
| Carton weight (lb) | 25 |
| Damp location | Yes |
| Carton weight (lb) | 25 |
| Ip rating | 65 |
| Lumens initial (lm) | 5200 |
| Mounting | J-box |
| Carton size (inch) | 20 x 11 x 11 |
| Case qty | 5 |
| Dimensions (l x w x h) | 9.5 x 9.5 x 3.1 |
| Dimensions(l x w x h) | 9.5 x 9.5 x 3.1 |
| Mounting option | Pendant |
| Size (inch) | 20 x 11 x 11 |
| Wet location | Yes |
| Ordering code | 3665315 |
| Rated life (hour) | 50000 |
| Dimmable | 0-10v |
By purchasing this product, you acknowledge that UV lamps can be harmful if misused. Please follow all safety instructions.
This UV and/or Germicidal lamp emits ultraviolet radiation and is intended for controlled environments only. UV radiation can be hazardous to health if not handled properly.
By purchasing and using this product, the customer agrees and acknowledges full responsibility for:
While this product is manufactured to high standards, no guarantees are made regarding its effectiveness for any particular scientific method, simulated environment, water purification process, research outcome, industrial application, manufacturing process, or experimental result. Environmental factors, usage conditions, and application requirements vary widely, and it is the sole responsibility of the customer to determine suitability.
Any lab data, technical specifications, or performance information provided is for reference only and does not constitute a warranty or performance guarantee.
The seller disclaims all liability for injury or death, including humans, animals and plants, property damage, invalid results, performance failures, or regulatory noncompliance resulting from misuse, misapplication, inadequate testing, defective lamps, improperly manufactured or mislabelled lamps or failure to follow appropriate safety protocols.
Use at your own risk.
