Manufacturer Code: R34112
View Product Attributes
Hover to zoom, click top-left icon to view
For larger orders, 6014 item(s) available with a 1-2 week(s) lead time.

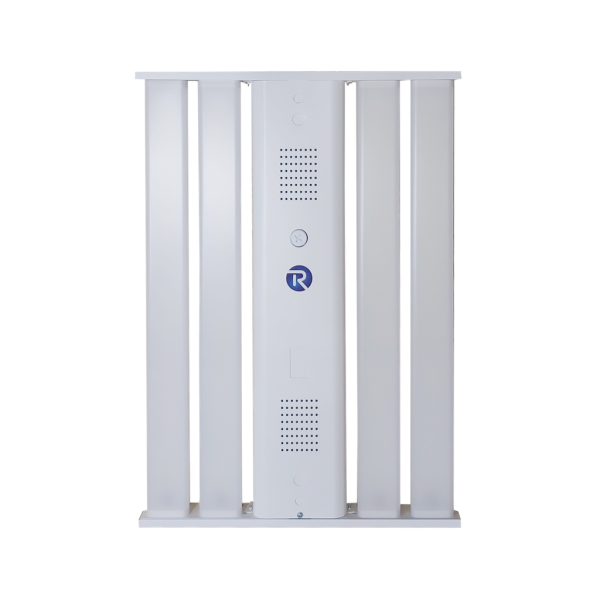

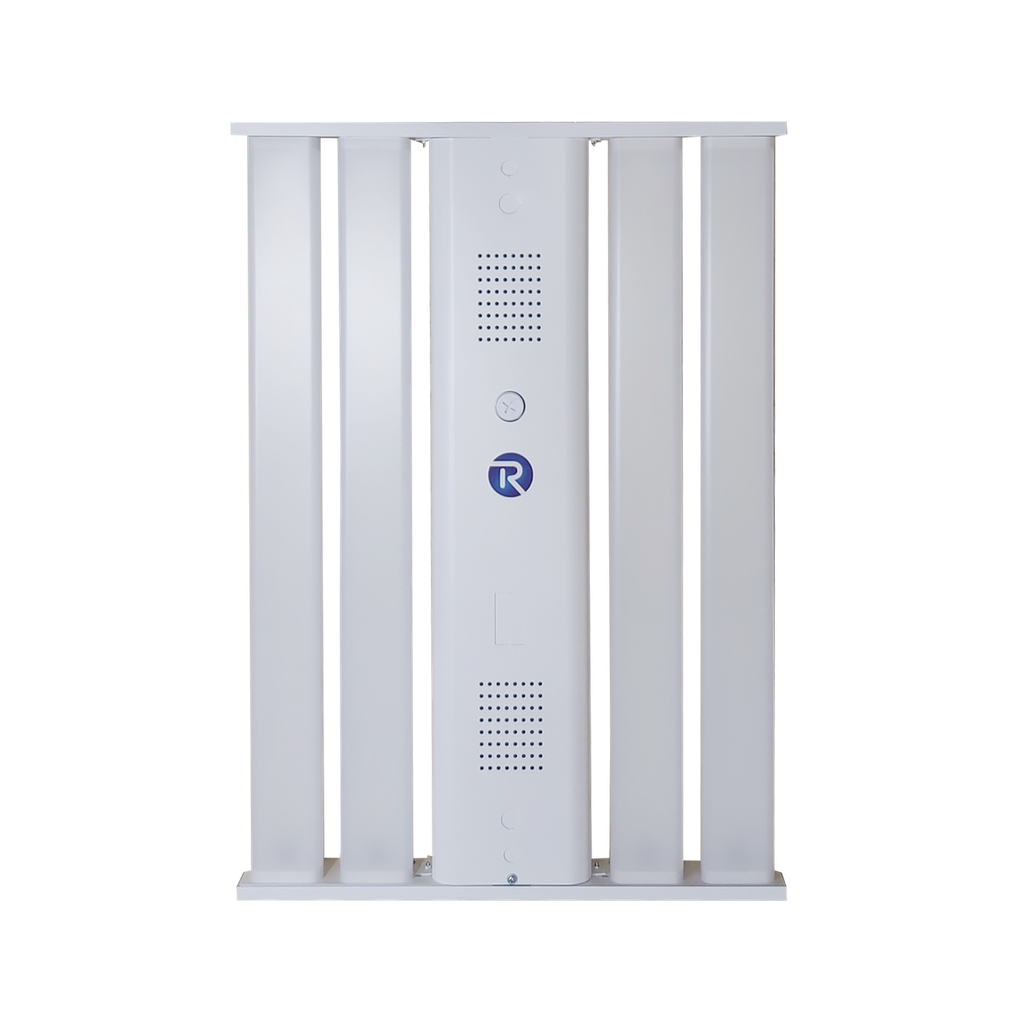

This LED Linear Highbay (Selectable CCT: 3500K, 4000K, 5000K; Selectable Wattage: 145W, 160W, 175W; Dual Voltage 120–347V) is no longer available.
You can still purchase the updated version from us—it keeps the same linear design while offering field-selectable colour temperatures and wattages, giving you full control over light output and energy use. Its wide input voltage range (120–347V) ensures compatibility with various commercial and industrial electrical systems.

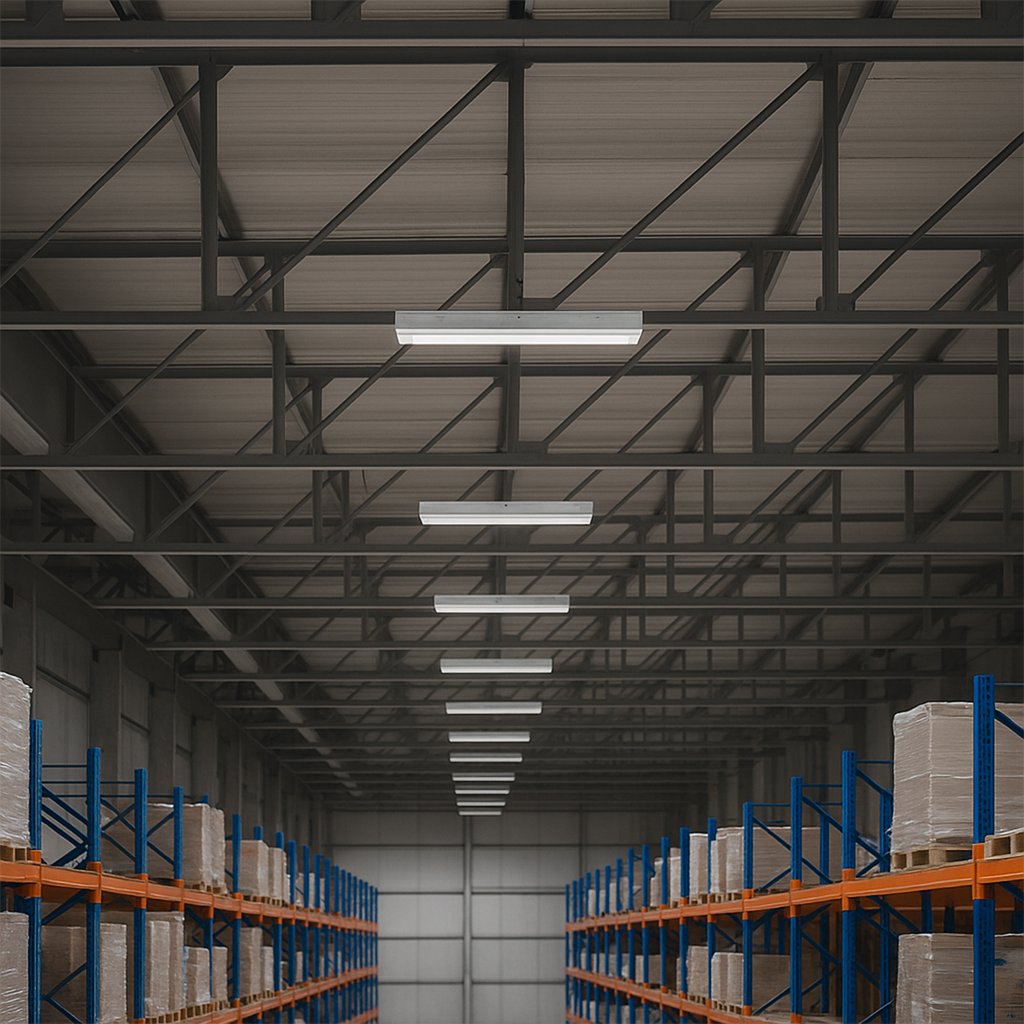

Perfect for warehouses, manufacturing facilities, gyms, and large retail spaces, the new model delivers bright, even illumination with optimised efficiency, a long service life, and mercury-free construction.
Note: As LED fixtures age, slight variations in brightness or colour may occur. When installed next to older units—even if originally identical—you may notice subtle differences in tone or output. This is normal behaviour for LED lighting.
| Kelvin | Selectable 3500/4000/5000 |
|---|---|
| Volts | 120-347 |
| Watts | Selectable 145, 160 or 175W |
| Beam Spread in Degrees | 120 |
| Lumens | Selectable 24780, 27125, or 30275 lumens |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 50000 + |
| Temperature Range | -40 to 50C (-40 to 122F) |
| Manufacturer Description | LED LINEAR HIGHBAY R2 | 35k/4k/5k Selectable CCT | 145w/160w/175w Selectable Wattage | Dual Voltage 120-347v | 10FT Cord Included | |
| Body Colour | White |
| Manufacturer Code | R34112 |
| Dimmable | Yes |
| Case Dimensions Inches | 27.25"x17"x2.75" – 3lbs |
| Case Quantity | 1 |
| Manufacturer Name | RENO |
| Beam angle (degree) | 120 |
|---|---|
| Products | High efficiency linear highbays |
| Color temperature (k) | 3500/4000/5000k(multi cct) |
| Cri | >80 |
| Description | Linear highbay r2 | selectable wattage 145/160/175w | selectable cct 35/40/50k | 120-347v | 10ft cord included | |
| Dimmable | 0-10v |
| Dlc type & id | S-srmxd7 |
| Efficacy | Up to 177lm/w |
| Finish | White |
| Lifespan (hours) | 100,000hrs |
| Lumens | 24780/27125/30275 |
| Operating temperature | -40f to +122f (-40c to +50c) |
| Power (w) | 145/160/175w |
| Voltage (v) | 120-347v |
| Box qty | 1 |
| Shipping dimensions | 27.25"x17"x2.75" - 3lbs |
| Order no # | R34112 |
| Dlc premium: high-bay luminaires | S-ppjlmr |
