RENO R35313 - RENO-24BLPL-UNV/347-MWMCCT-HL-MS
Manufacturer Code: R35313
Not the right item? 💡 Contact Us
Stock Availability
Canada Wide Stock: 86
For larger orders, 86 item(s) available with a 1-2 week(s) lead time.

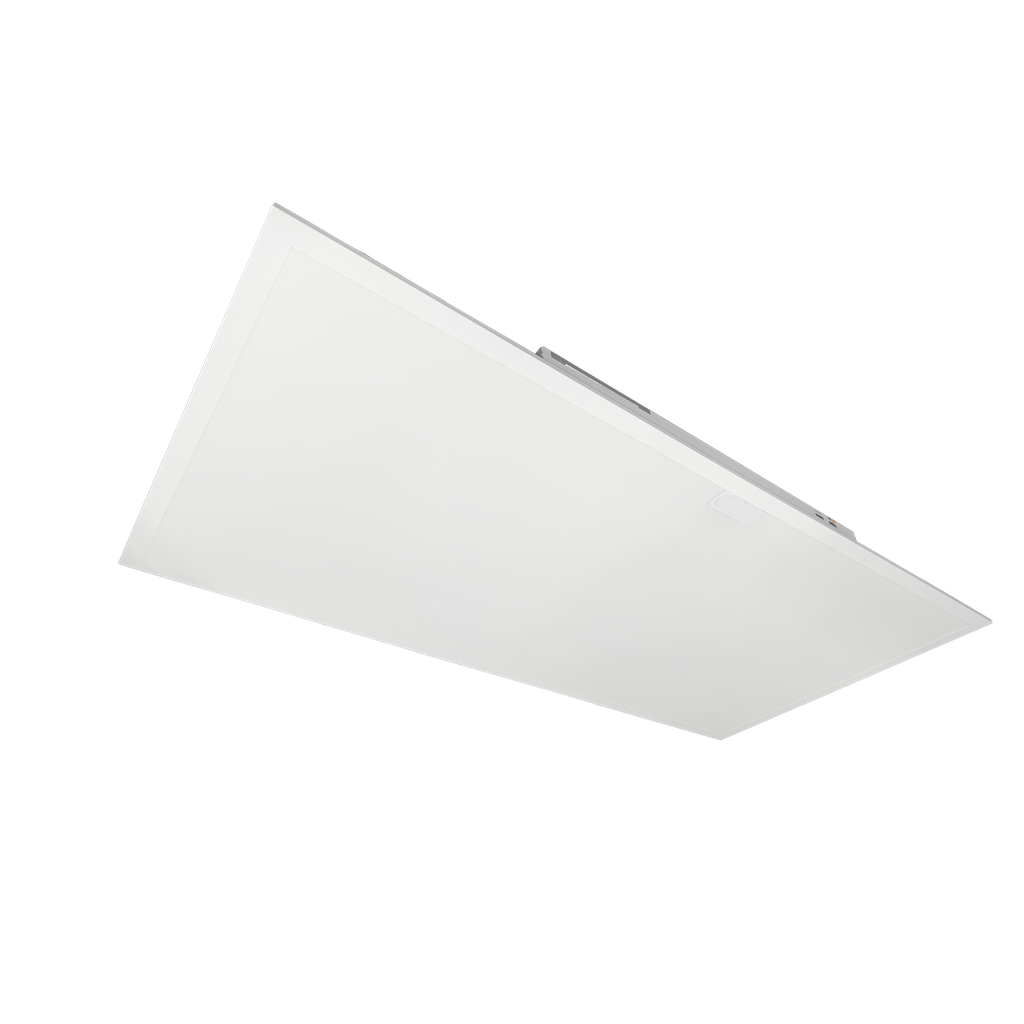

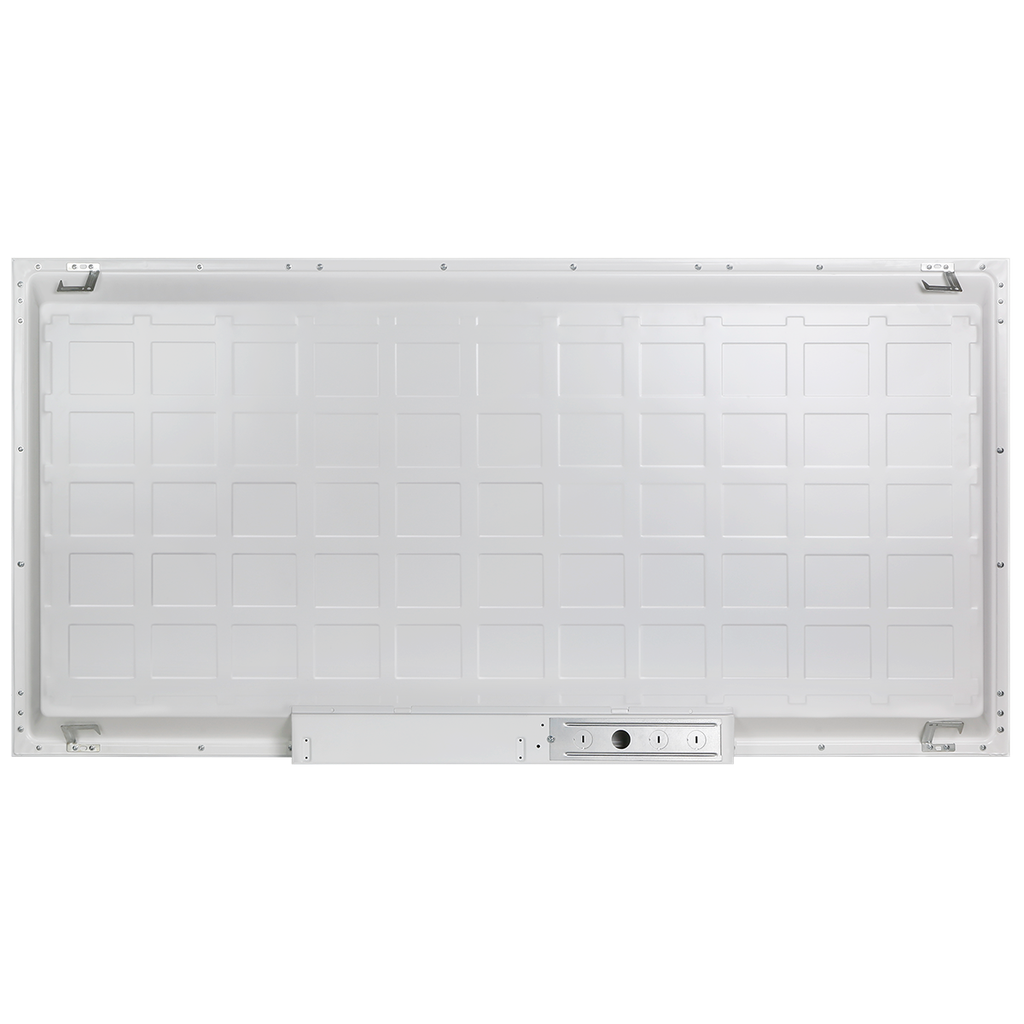

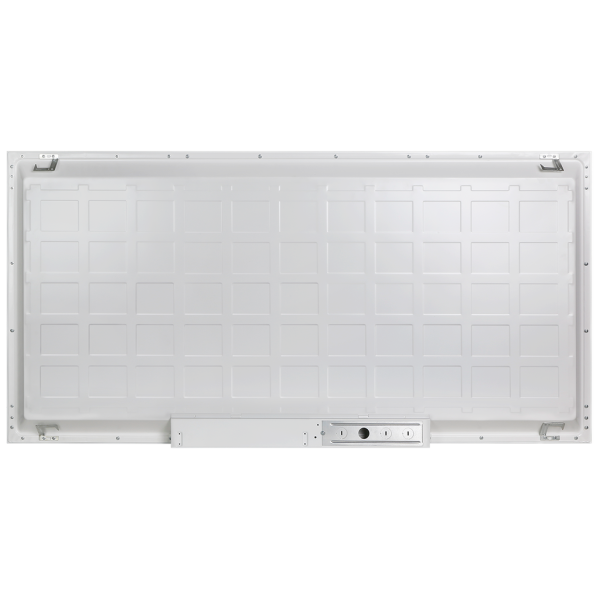

Flat Panel 2X4 LED SCCT Back Lit 120-347V
Product Accessories
RENO R39213
RENO-RFK24
RECESSED PANEL TRIM KIT-Recessed Trim Kit for 2 x 4 Flat Panel/ Center Basket Troffer/ Architectural Troffer Fixture installation use

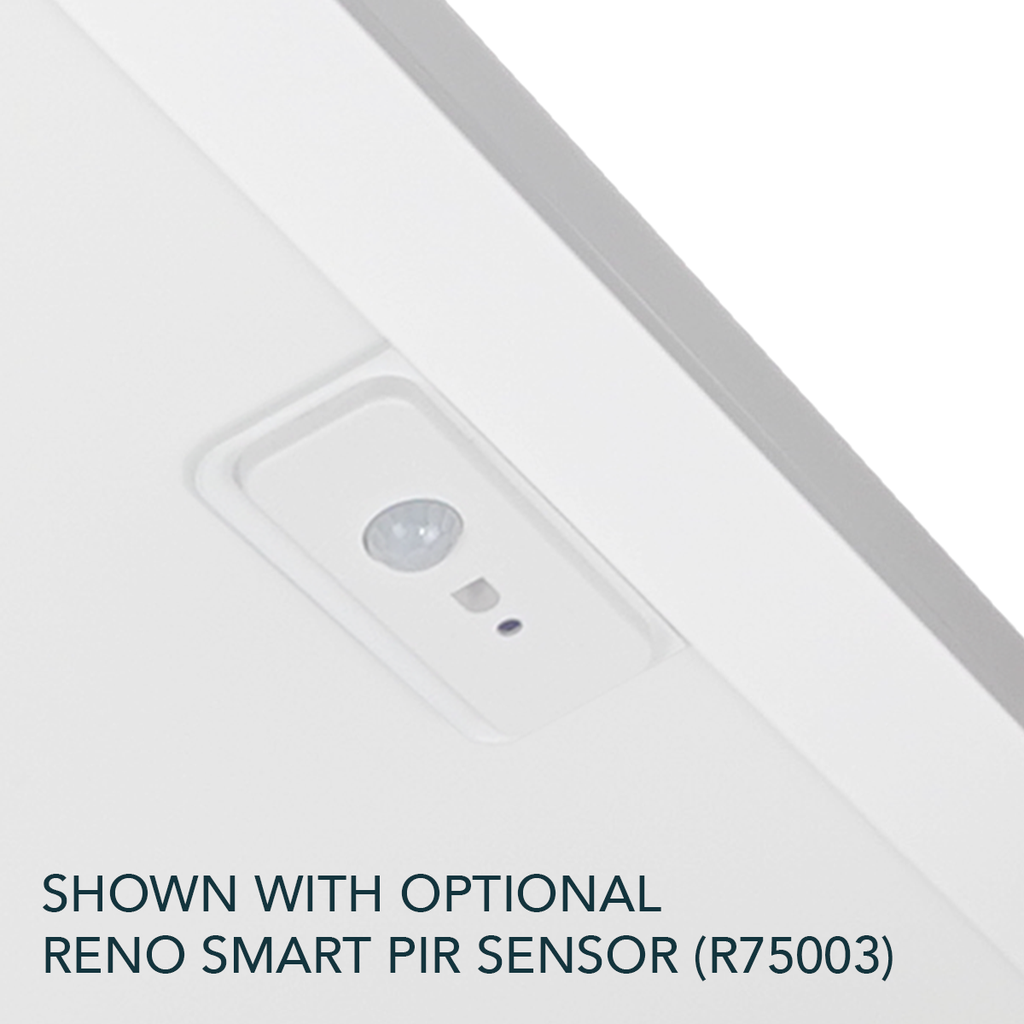

RENO R75003
RENO-RS-BPRN-12V
PIR Sensor for Troffers and Flat Panels | Daylight Harvesting | Single Channel | IP65 | 12V DC | 0-10V Dimming |

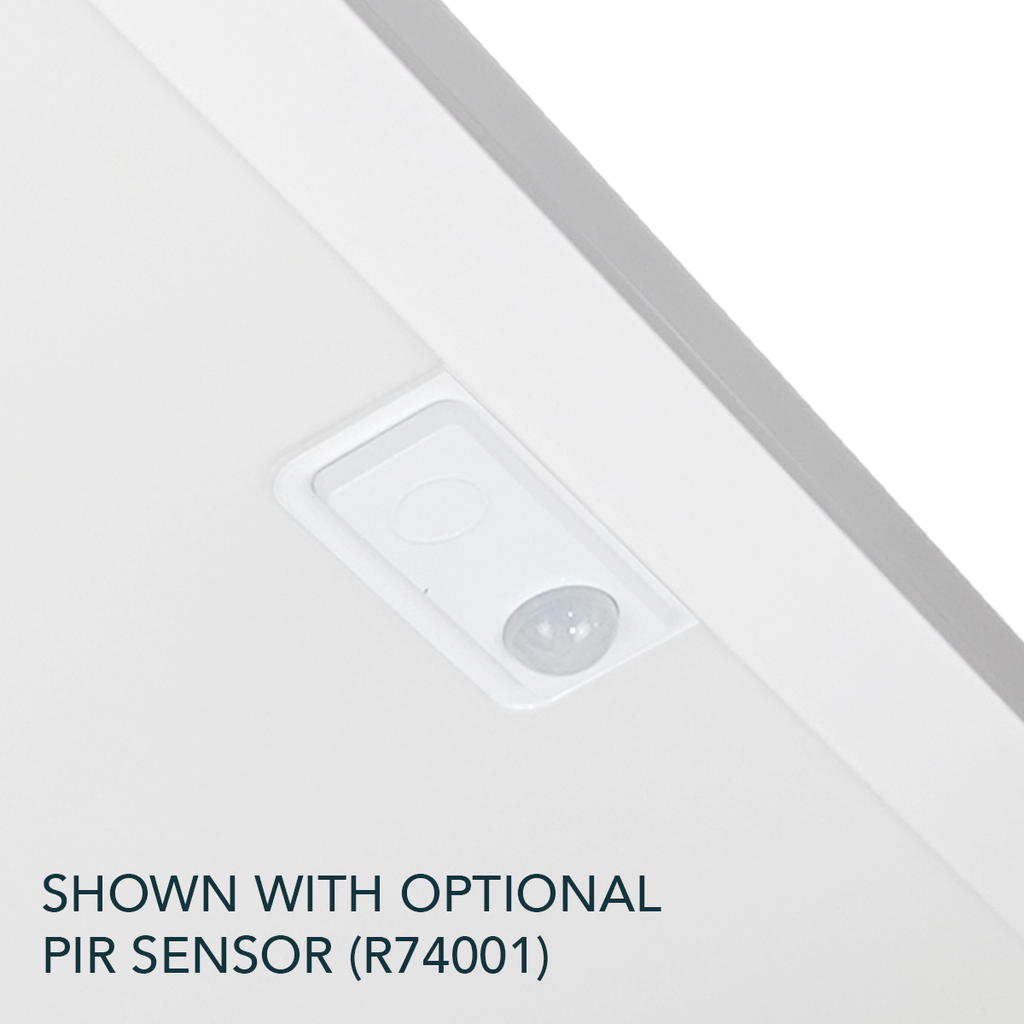

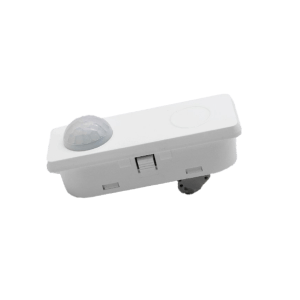

RENO R74001
RENO-SENSOR-PIR-H
Architecture LED Troffer PIR SENSOR **To program beyond default settings you must purchase a remote to configure sensor settings**
RENO R83001
RENO-EM-H15
EMERGENCY LED DRIVER - 15W ,100-347Vac, 50/60Hz ,0.1A max ,12W max 170V DC , 5c ~50c
Attributes
| Kelvin | Selectable 3500/4000/5000 |
|---|---|
| Volts | 120-347 |
| Watts | Selectable 30, 40, 50 or 60W |
| Beam Spread in Degrees | 110 |
| Lumens | Selectable 3900, 5200, 6500 or 8004 lumens |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 50000 + |
| Temperature Range | -20 to 50C (-4 to 122F) |
| Body Colour | White |
| Manufacturer Name | RENO |
| Manufacturer Code | R35313 |
| Dimmable | Yes |
| Case Dimensions Inches | 49" x 24" x 3" – 10lbs |
| Case Quantity | 2 |
Manufacturer Attributes
| Products | Premium sensor-ready flat panels |
|---|---|
| Cri | >80 |
| Description | Sensor-ready 2x4 back-lit panel | **does not include sensor** | choose from either reno smart bluetooth pir or standalone pir sensor when ordering | selectable wattage 30/40/50/60w | selectable cct 3500/4000/5000k | up to 133 lm/w | 120-347v | |
| Dimmable | 0-10v |
| Efficacy | Up to 133lm/w |
| Finish | White |
| Lumens | 3,900/5,200/ 6,500/8,004lm |
| Operating temperature | -4f to +122f (-20c to +50c) |
| Power (w) | 30/40/50/60w |
| Voltage (v) | 120-347v |
| Mol | 2x4 |
| Box qty | 2 |
| Shipping dimensions | 49" x 24" x 3" - 10lbs |
| Order no # | R35313 |
| Beam angle (degree) | 110 |
| Color temperature (k) | 35/40/5000k |
| Lifespan (hours) | 100,000hrs |
