RENO R35122 - RENO-22BPID-DV-MCCT-MW
Manufacturer Code: R35122
Not the right item? 💡 Contact Us
Stock Availability
Canada Wide Stock: 260
For larger orders, 260 item(s) available with a 1-2 week(s) lead time.

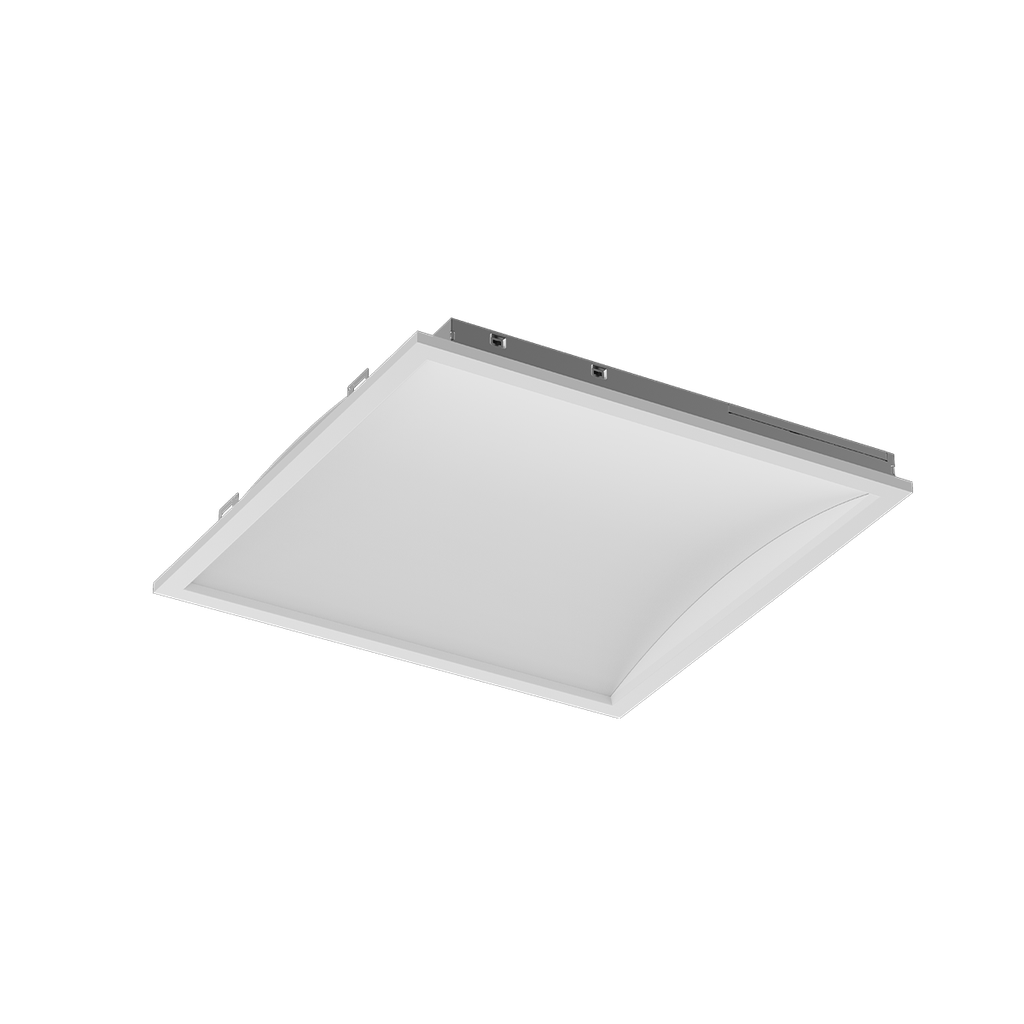

Flat Panel 2X2 LED SCCT Back Lit 120-347V
Product Accessories
RENO R39202
RENO-SMK22
LED PANEL TRIM KIT - surface mounted kits for 2X2 Panel installation use
$19.38
RENO R39212
RENO-RFK22
RECESSED PANEL TRIM KIT -Recessed Trim Kit for 2 x 2 Flat Panel/ Center Basket Troffer/ Architectural Troffer Fixture installation use
$45.00
RENO R83001
RENO-EM-H15
EMERGENCY LED DRIVER - 15W ,100-347Vac, 50/60Hz ,0.1A max ,12W max 170V DC , 5c ~50c
$304.30 - $328.47
Attributes
| Kelvin | Selectable 3500/4000/5000 |
|---|---|
| Volts | 120-347 |
| Watts | Selectable 25, 30 or 40W |
| Beam Spread in Degrees | 90 |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 50000 + |
| Temperature Range | -25 to 45C (-13 to 113F) |
| Manufacturer Description | LED 2X2 Indirect Panel | 25/30/40W Selectable Wattage | 3500/4000/5000K Selectable CCT | Up to 125 lm/W | 120-347V | |
| Body Colour | White |
| Manufacturer Code | R35122 |
| Dimmable | Yes |
| Case Dimensions Inches | 26"x11.5"x26" – 20lbs |
| Case Quantity | 4 |
| Manufacturer Name | RENO |
Manufacturer Attributes
| Products | Indirect curved panels |
|---|---|
| Cri | >80 |
| Description | 2x2 indirect curved panel | selectable wattage 25/30/40w | selectable cct 35/40/5000k | 120-347v | white finish | |
| Dimmable | 0-10v |
| Efficacy | 125lm/w |
| Finish | White |
| Operating temperature | -13f to 113f (-25c to 45c) |
| Power (w) | 25/30/40w |
| Voltage (v) | 120-347v |
| Mol | 2x2 |
| Box qty | 4 |
| Shipping dimensions | 26"x11.5"x26" - 20lbs |
| Order no # | R35122 |
| Beam angle (degree) | 90 |
| Color temperature (k) | 35/40/5000k |
| Lifespan (hours) | 100,000hrs |
| Dlc premium: low-bay luminaires | S-mw6vgn |
