Manufacturer Code: 13141
Hover to zoom, click top-left icon to view
For larger orders, 935 item(s) available with a 1-2 week(s) lead time.

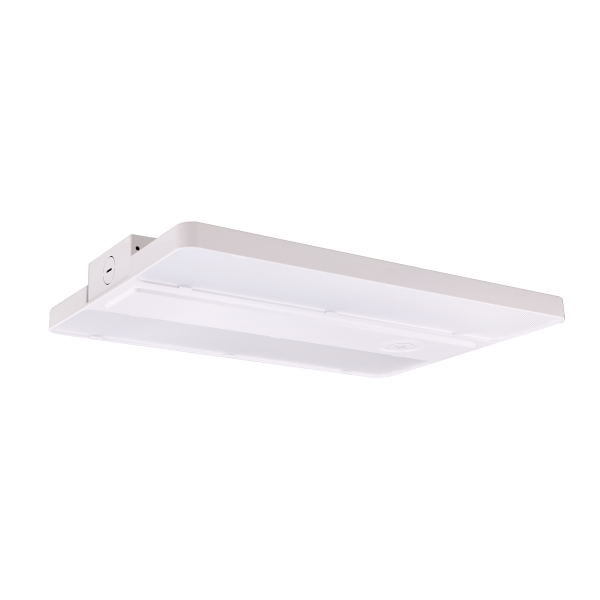

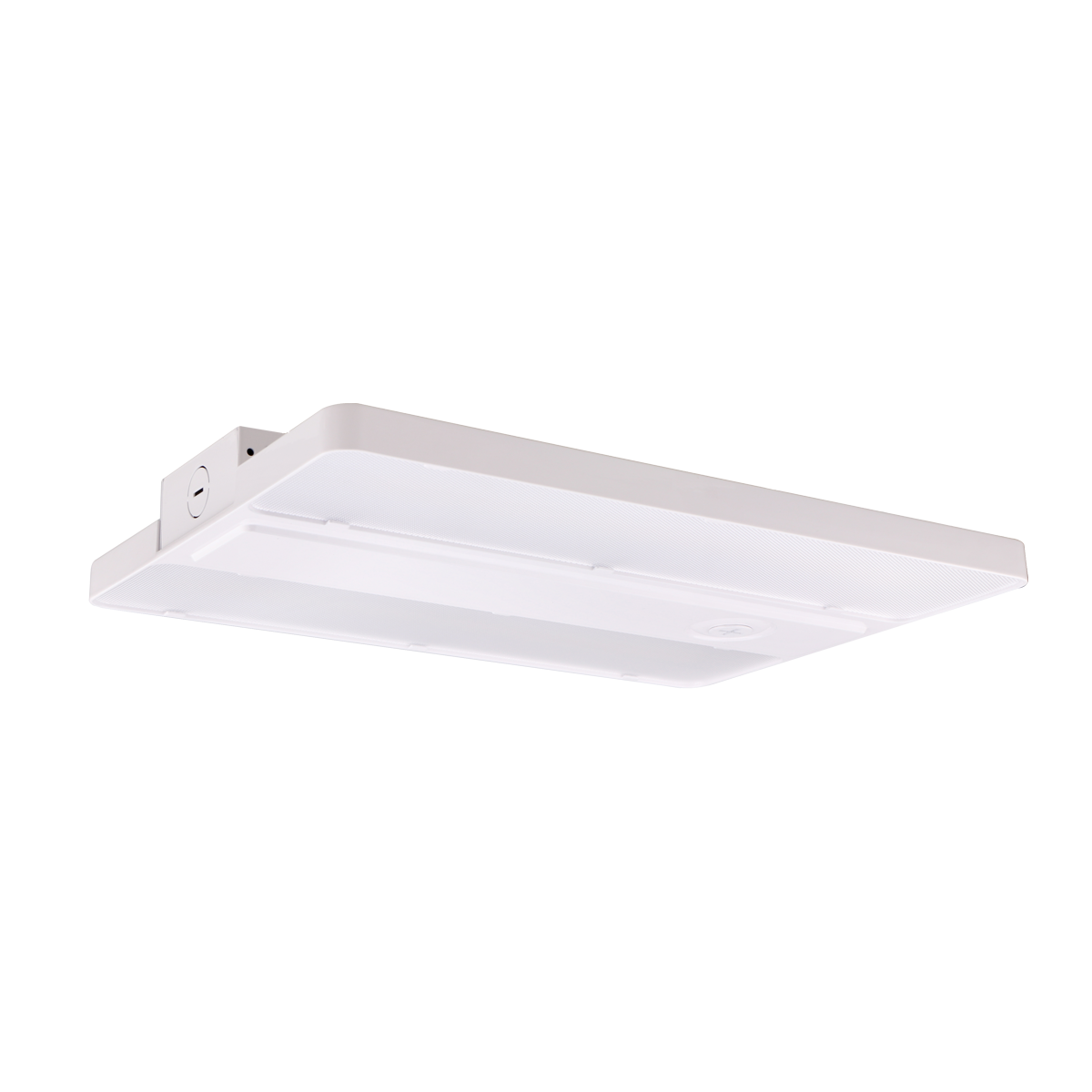

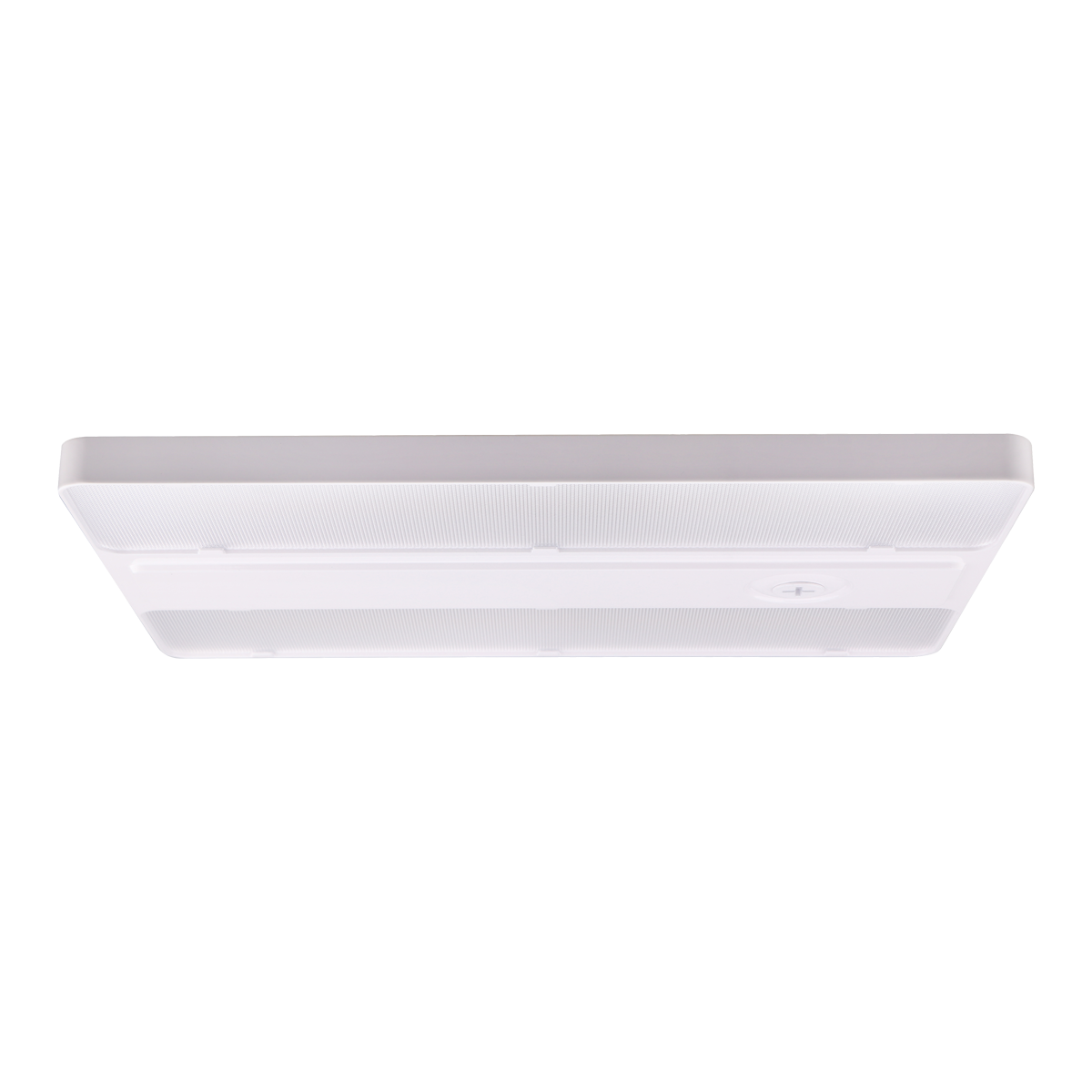

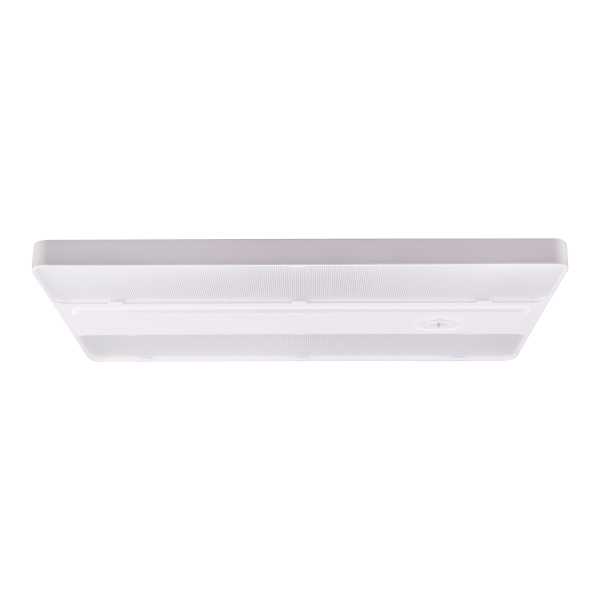

This 4-foot linear high bay LED fixture (4000K neutral white, 120–277V) is no longer available.
You can still purchase the updated version from us—it maintains the same 4-foot design, neutral white 4000 Kelvin light output, and wide 120–277V voltage range for easy compatibility with existing systems.
Ideal for large-scale lighting applications such as warehouses, gymnasiums, and manufacturing facilities, the new model delivers bright, even illumination with greater energy efficiency and a longer service life, reducing overall maintenance costs.
Note: Over time, LED fixtures may experience minor shifts in brightness or colour. When installed next to older units, you may notice slight variations—this is normal for LED lighting.
| Kelvin | 4000 |
|---|---|
| Volts | 120-277VAC |
| Watts | Selectable 90, 110, 130, or 150W |
| Lumens | Selectable 21000, 18200, 15400, or 12600 lumens |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 50000 |
| Temperature Range | Without Motion Sensor: -40F to 122F (-40C to 50C), With Motion Sensor: -22F to 122F (-30C to 50C) |
| Manufacturer Description | LHC1 Linear High Bay Compact, PowerSet 150/130/110/90W, 4000K, 120-277V, 0-10V Dimming |
| Manufacturer Name | EIKO |
| Manufacturer Code | 13141 |
| Dimmable | 0-10V |
| IP Rating | IP20 |
| Cct | 4000 |
|---|---|
| Cri | 80+ |
| Dimming | 0-10 |
| Dlc version | Dlc premium |
| Efficacy (lm/w) | 140 lm/w |
| Description | Lhc1 linear high bay compact, powerset 150/130/110/90w, 4000k, 120-277v, 0-10v dimming |
| Brand | Eiko |
| Ip rating | Ip20 |
| Lumens (lm) | 21,000 lm / 18,200 lm / 15,400 lm / 12,600 lm |
| Operating temp range (°f/°c) | Without motion sensor: -40f to 122f (-40c to 50c), with motion sensor: -22f to 122f (-30c to 50c) |
| Rated life | 50,000 |
| Replacement for/equivalent | 6 lamp 4ft 32w t8 / 4 lamp 4ft 54w t5 / 400w hid (150w lhc1) 4 lamp 4ft 32w t8 / 250w hid (90w lhc1) |
| Voltage | 120-277vac |
| Wattage | 150w / 130w / 110w / 90w |
| Item id | Lhc1-ps150-40-u |
| Item type | Fixtures |
| Order code | 13141 |
By purchasing this product, you acknowledge that UV lamps can be harmful if misused. Please follow all safety instructions.
This UV and/or Germicidal lamp emits ultraviolet radiation and is intended for controlled environments only. UV radiation can be hazardous to health if not handled properly.
By purchasing and using this product, the customer agrees and acknowledges full responsibility for:
While this product is manufactured to high standards, no guarantees are made regarding its effectiveness for any particular scientific method, simulated environment, water purification process, research outcome, industrial application, manufacturing process, or experimental result. Environmental factors, usage conditions, and application requirements vary widely, and it is the sole responsibility of the customer to determine suitability.
Any lab data, technical specifications, or performance information provided is for reference only and does not constitute a warranty or performance guarantee.
The seller disclaims all liability for injury or death, including humans, animals and plants, property damage, invalid results, performance failures, or regulatory noncompliance resulting from misuse, misapplication, inadequate testing, defective lamps, improperly manufactured or mislabelled lamps or failure to follow appropriate safety protocols.
Use at your own risk.
