EIKO 13181 - BP1-24PS50P-FCCT-H
Manufacturer Code: 13181
Not the right item? 💡 Contact Us
Stock Availability
Canada Wide Stock: 10376
For larger orders, 10376 item(s) available with a 1-2 week(s) lead time.

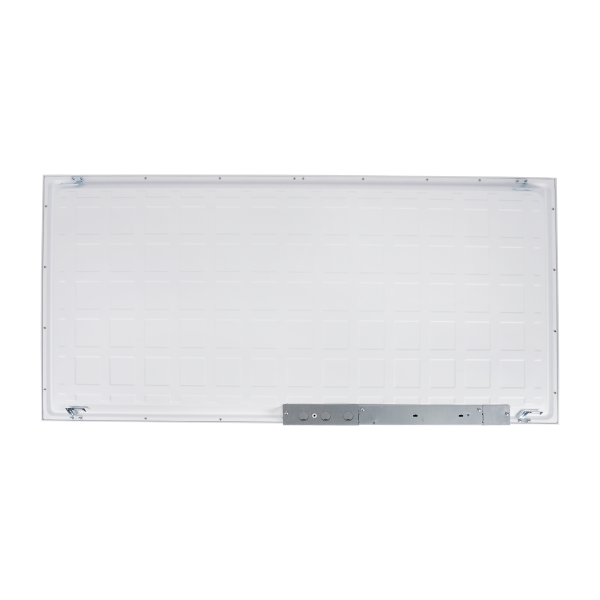

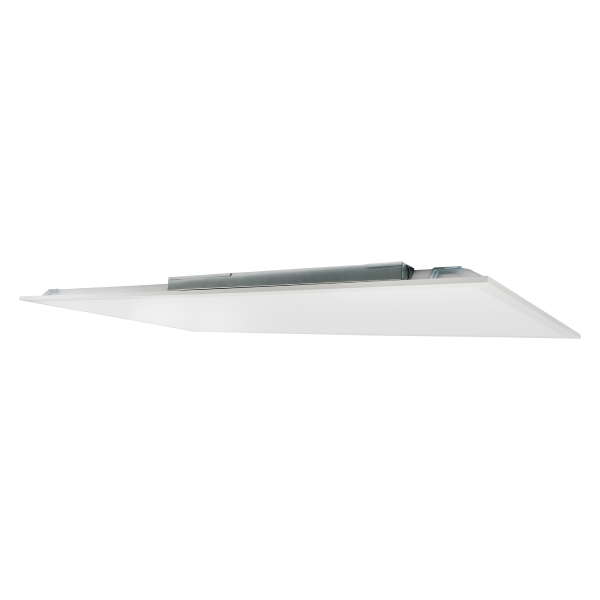

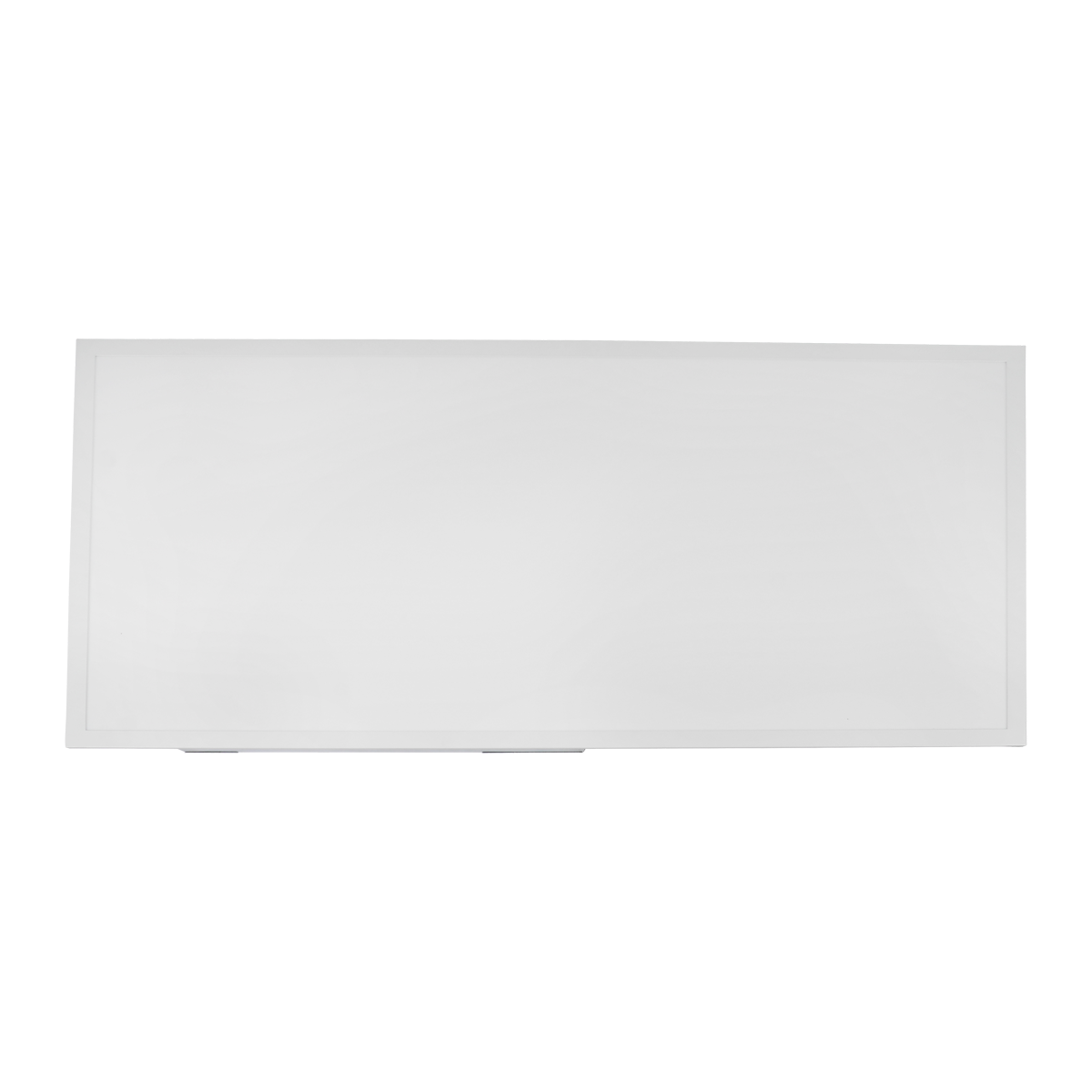

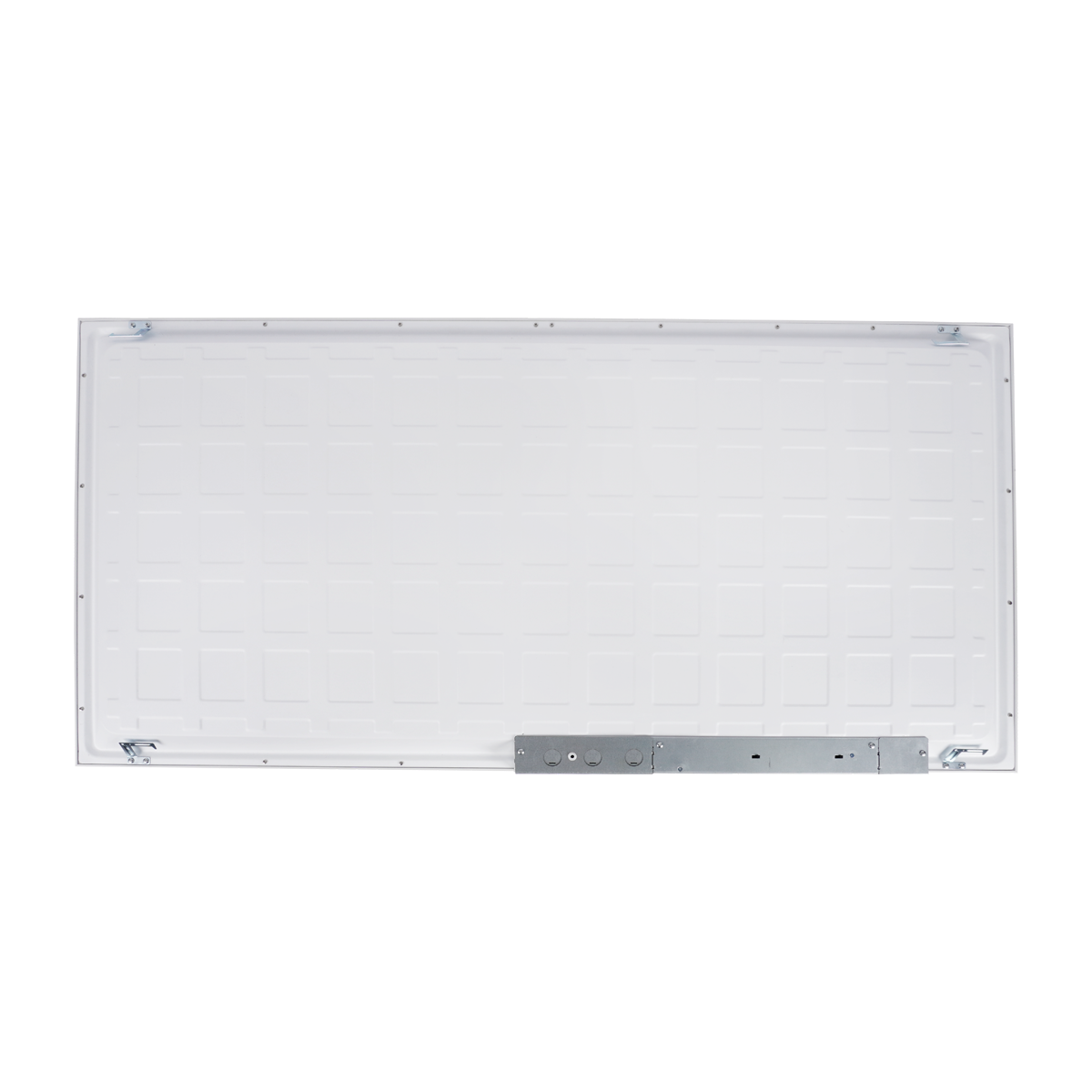

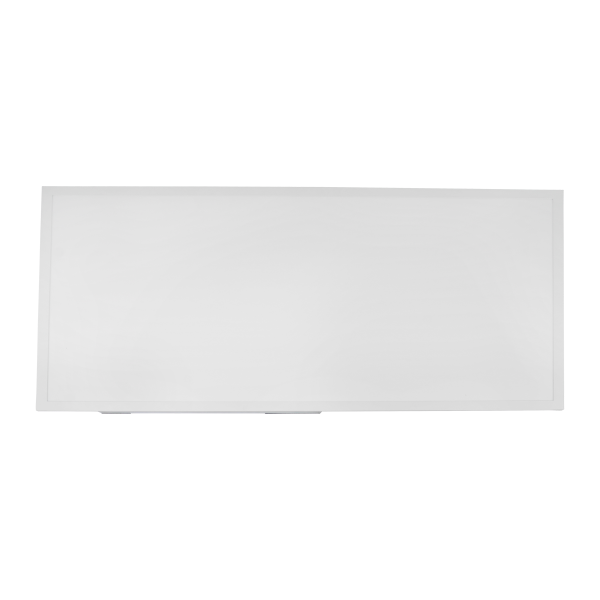

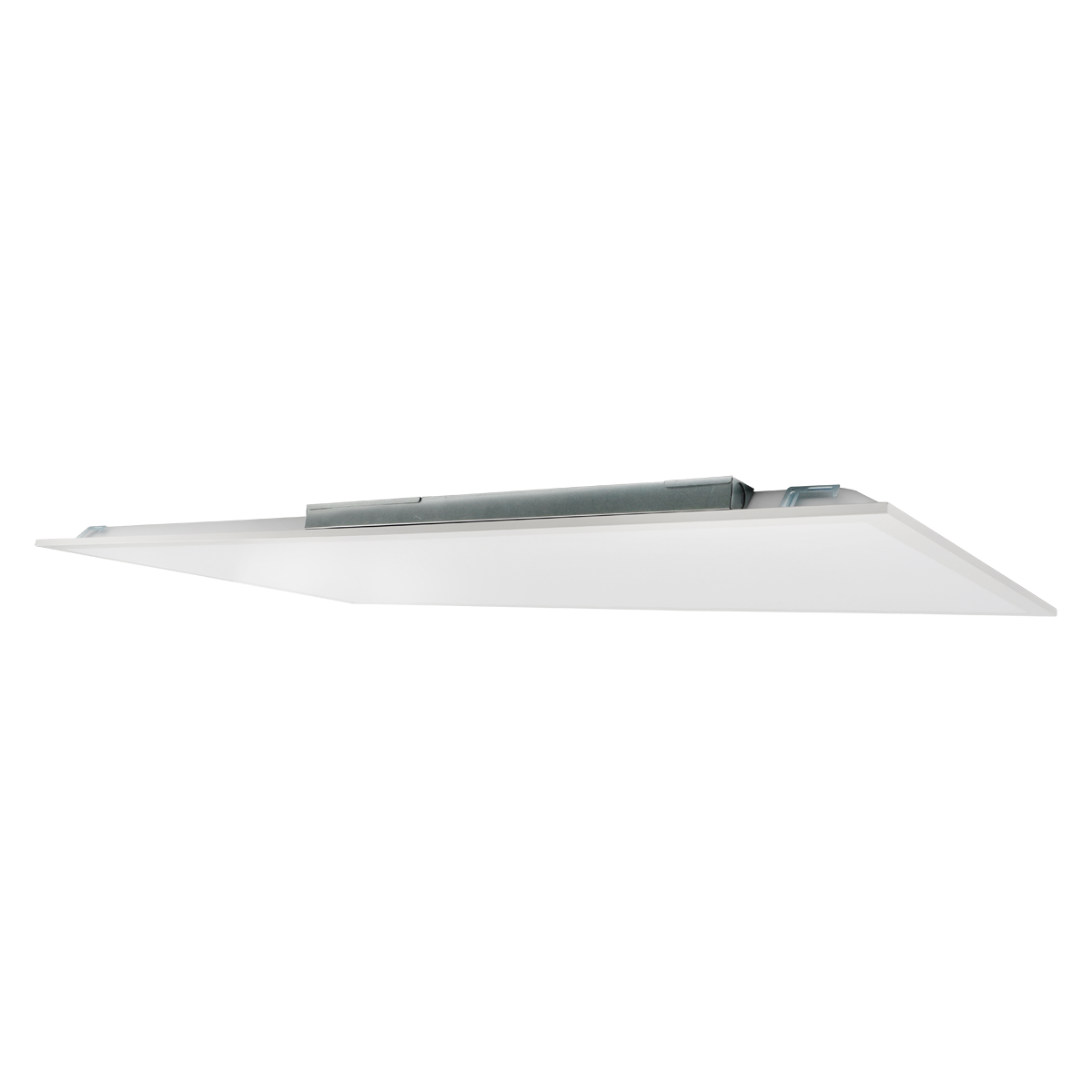

Flat Panel 2X4 LED SCCT Back Lit 120-347V
Product Accessories
EIKO 13574
EEBE40WHA170S
EiKO Emergency Battery External 40W 100-347VAC 170VDC Linear Single Flex-Conduit
$386.10
Attributes
| Kelvin | Selectable 3500/4000/5000 |
|---|---|
| Volts | 120-347VAC |
| Watts | Selectable 30, 40 or 50W |
| Lumens | Selectable 6250, 5000, or 3750 lumens |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 50000 |
| Temperature Range | -20 to 45C (-4 to 113F) |
| Manufacturer Description | BP1 Backlit Panel, 2×4, PowerSet 50/40/30W, FieldCCeT 3500/4000/5000K, 120-347V, 0-10V Dimming |
| Manufacturer Name | EIKO |
| Manufacturer Code | 13181 |
| Dimmable | 0-10V |
| IP Rating | IP20 |
Manufacturer Attributes
| Cct | 3500/4000/5000 |
|---|---|
| Cri | 80+ |
| Dimming | 0-10/pwm/resistance |
| Dlc version | Dlc premium |
| Efficacy (lm/w) | 125 lm/w |
| Description | Bp1 backlit panel, 2x4, powerset 50/40/30w, fieldccet 3500/4000/5000k, 120-347v, 0-10v dimming |
| Brand | Eiko |
| Ip rating | Ip20 |
| Lumens (lm) | 6,250/5,000/3,750 lm |
| Operating temp range (°f/°c) | -4f to 113f (-20c to 45c) |
| Rated life | 50,000 |
| Replacement for/equivalent | 4 x 32w 4ft t8 |
| Voltage | 120-347vac |
| Wattage | 50/40/30w |
| Item id | Bp1-24ps50p-fcct-h |
| Item type | Fixtures |
| Order code | 13181 |
