EIKO 13175 - BP1-22PS40S-40-H (New Version - Read Description)
Manufacturer Code: 13175
Not the right item? 💡 Contact Us
Image is for reference only. Actual product may vary.
ALL PRICING DISPLAYED IN CANADIAN DOLLARS ($)
Manufacturer Code: 13175
Image is for reference only. Actual product may vary.
We may be able to find this product. Please contact us Monday to Friday, 8 AM to 4 PM, at (416) 493-2977 or click the button below.

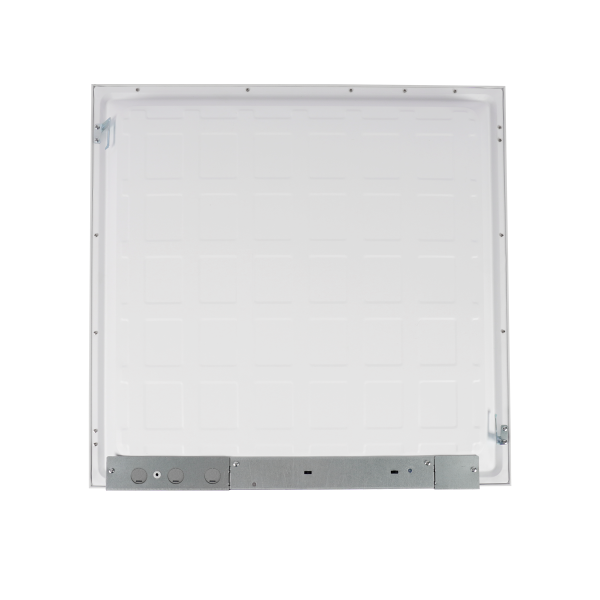

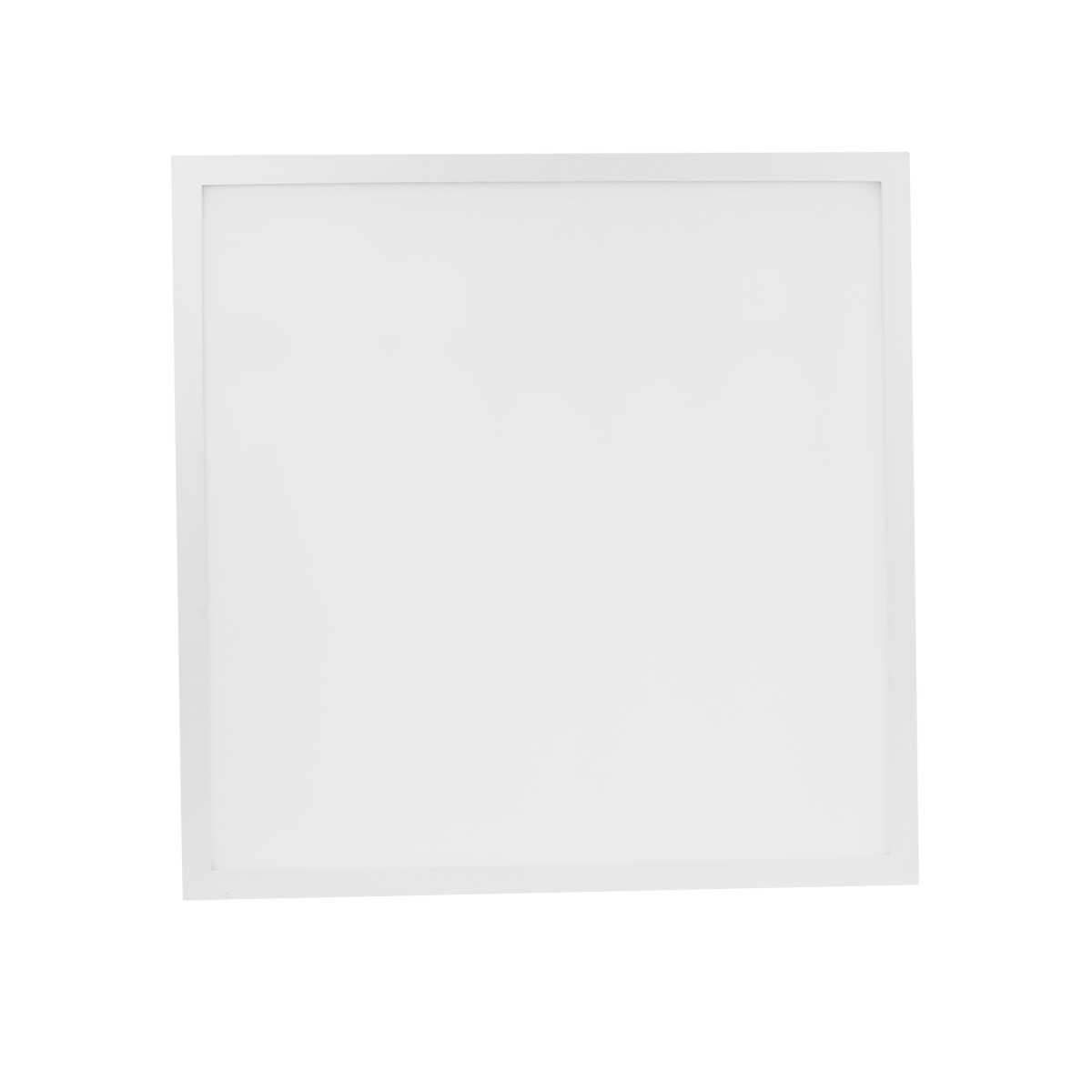

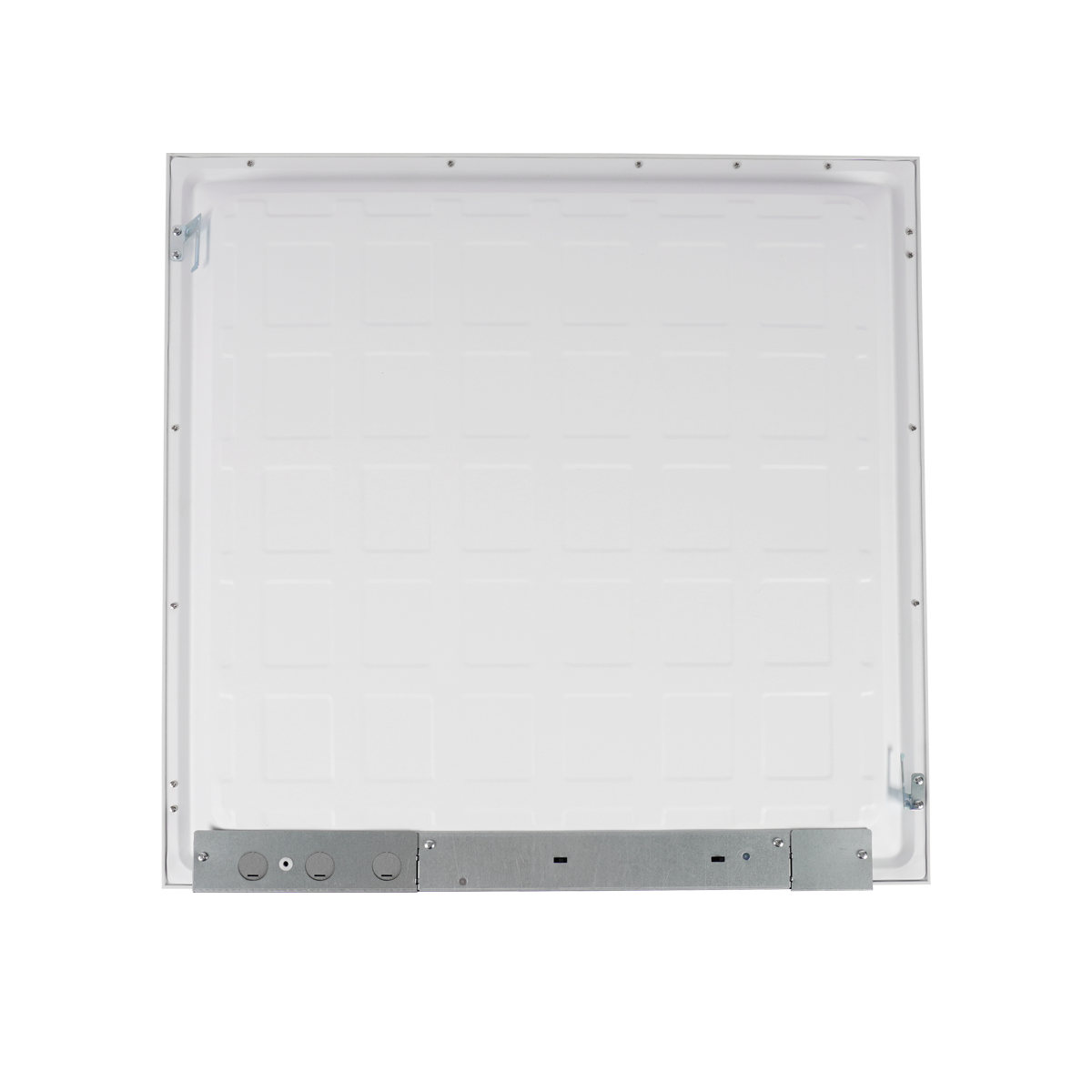

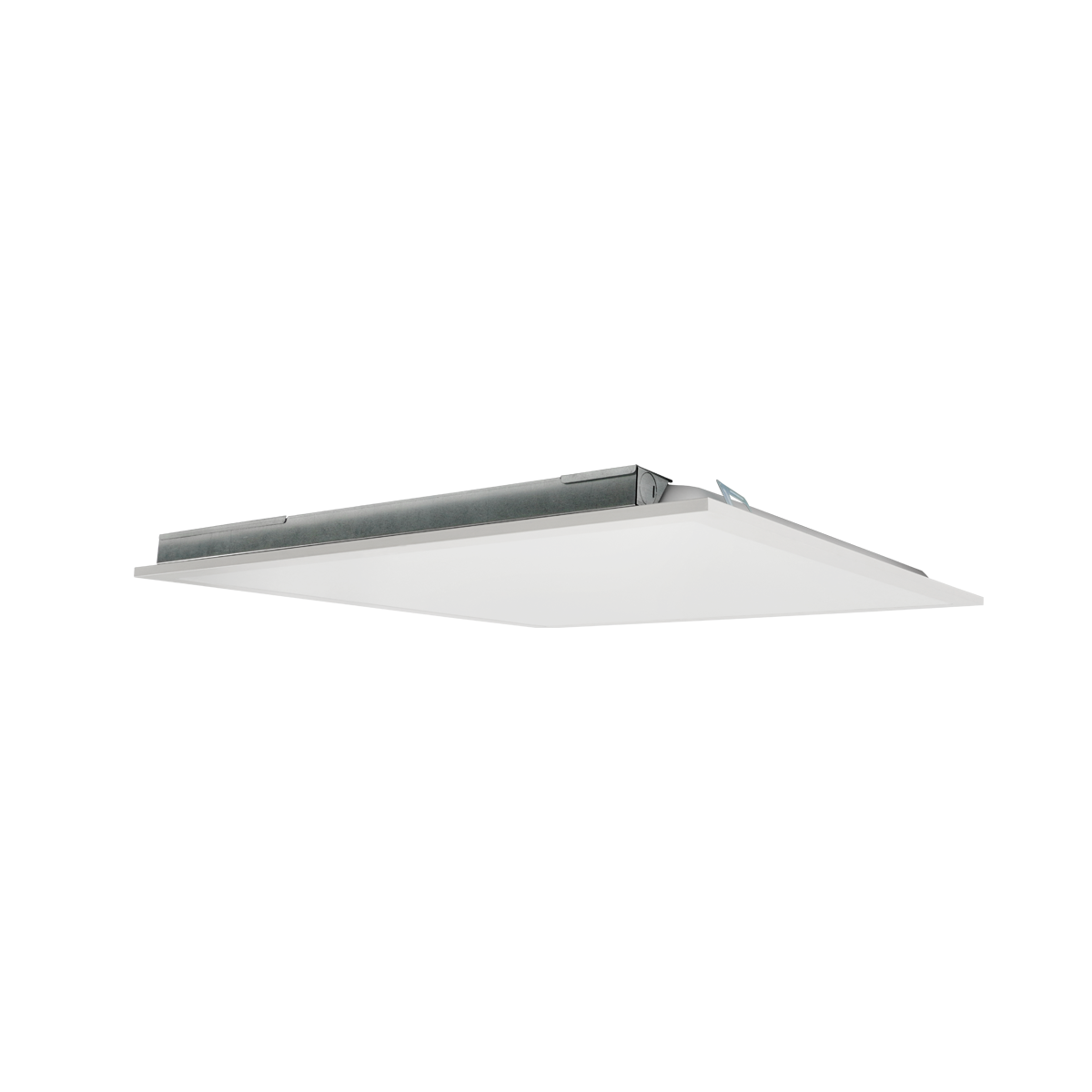

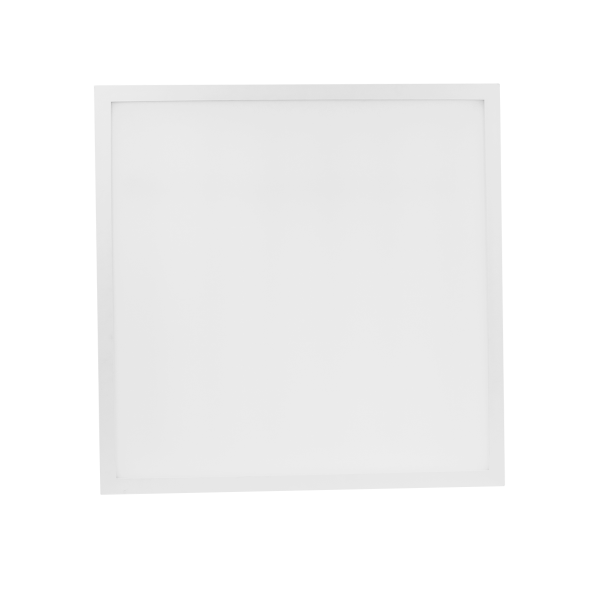

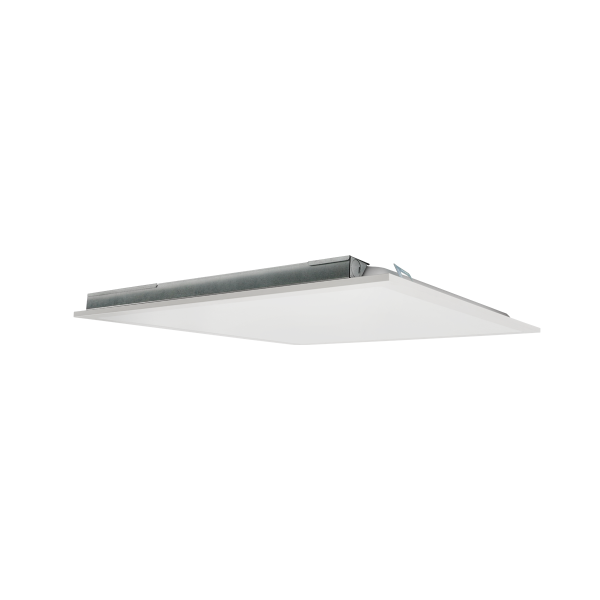

This 2x2 LED flat panel (4000K Cool White, Back-Lit, 120–347V) is no longer available.
You can still purchase the updated version from us—it features the same 2x2 size, back-lit design, and broad voltage compatibility (120–347V), with a consistent 4000K cool white colour temperature.
The new model is designed to fit standard grid ceilings and provide reliable, uniform illumination for commercial and institutional spaces.
Note: All LEDs naturally shift in brightness and colour over time. If you install this new panel next to older ones—even if they were originally identical—you may notice slight differences in tone or output. This is normal LED behaviour.
| Kelvin | 4000 |
|---|---|
| Volts | 120-347VAC |
| Watts | Selectable 25, 30, or 40W |
| Lumens | Selectable 4400, 3300, or 2750 lumens |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 50000 |
| Temperature Range | -20 to 45C (-4 to 113F) |
| Manufacturer Description | BP1 Backlit Panel, 2×2, PowerSet 40/30/25W, 4000K, 120-347V, 0-10V Dimming |
| Manufacturer Name | EIKO |
| Manufacturer Code | 13175 |
| Dimmable | 0-10V |
| IP Rating | IP20 |
| Cct | 4000 |
|---|---|
| Cri | 80+ |
| Dimming | 0-10/pwm/resistance |
| Dlc version | Dlc standard |
| Efficacy (lm/w) | 110 lm/w |
| Description | Bp1 backlit panel, 2x2, powerset 40/30/25w, 4000k, 120-347v, 0-10v dimming |
| Brand | Eiko |
| Ip rating | Ip20 |
| Lumens (lm) | 4,400/3,300/2,750 lm |
| Operating temp range (°f/°c) | -4f to 113f (-20c to 45c) |
| Rated life | 50,000 |
| Replacement for/equivalent | 2 x 17w 2ft t8 |
| Voltage | 120-347vac |
| Wattage | 40/30/25w |
| Item id | Bp1-22ps40s-40-h |
| Item type | Fixtures |
| Order code | 13175 |
