| Kelvin | Selectable 3500/4000/5000 |
|---|---|
| Volts | 120-347VAC |
| Watts | Selectable 20, 25, or 30W |
| Lumens | Selectable 3750, 3125, or 2500 lumens |
| Colour Rendering Index (CRI) | 80+ |
| Average Life in Hours | 50000 |
| Temperature Range | -20 to 45C (-4 to 113F) |
| Manufacturer Description | BP1 Backlit Panel, 2×2, PowerSet 30/25/20W, FieldCCeT 3500/4000/5000K, 120-347V, 0-10V Dimming, Controls Ready |
| Manufacturer Name | EIKO |
| Manufacturer Code | 14360 |
| Dimmable | 0-10V |
| IP Rating | IP20 |

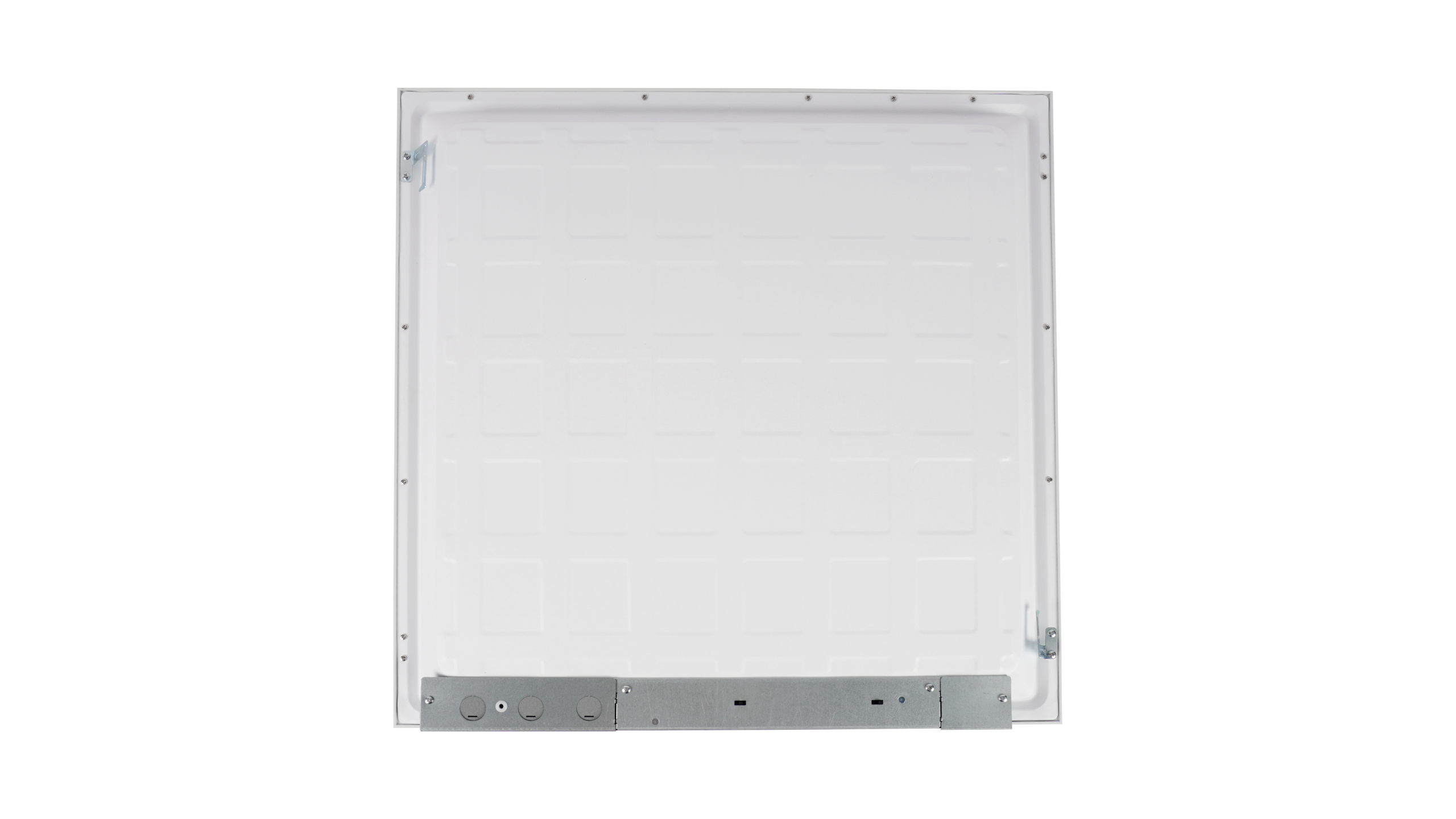

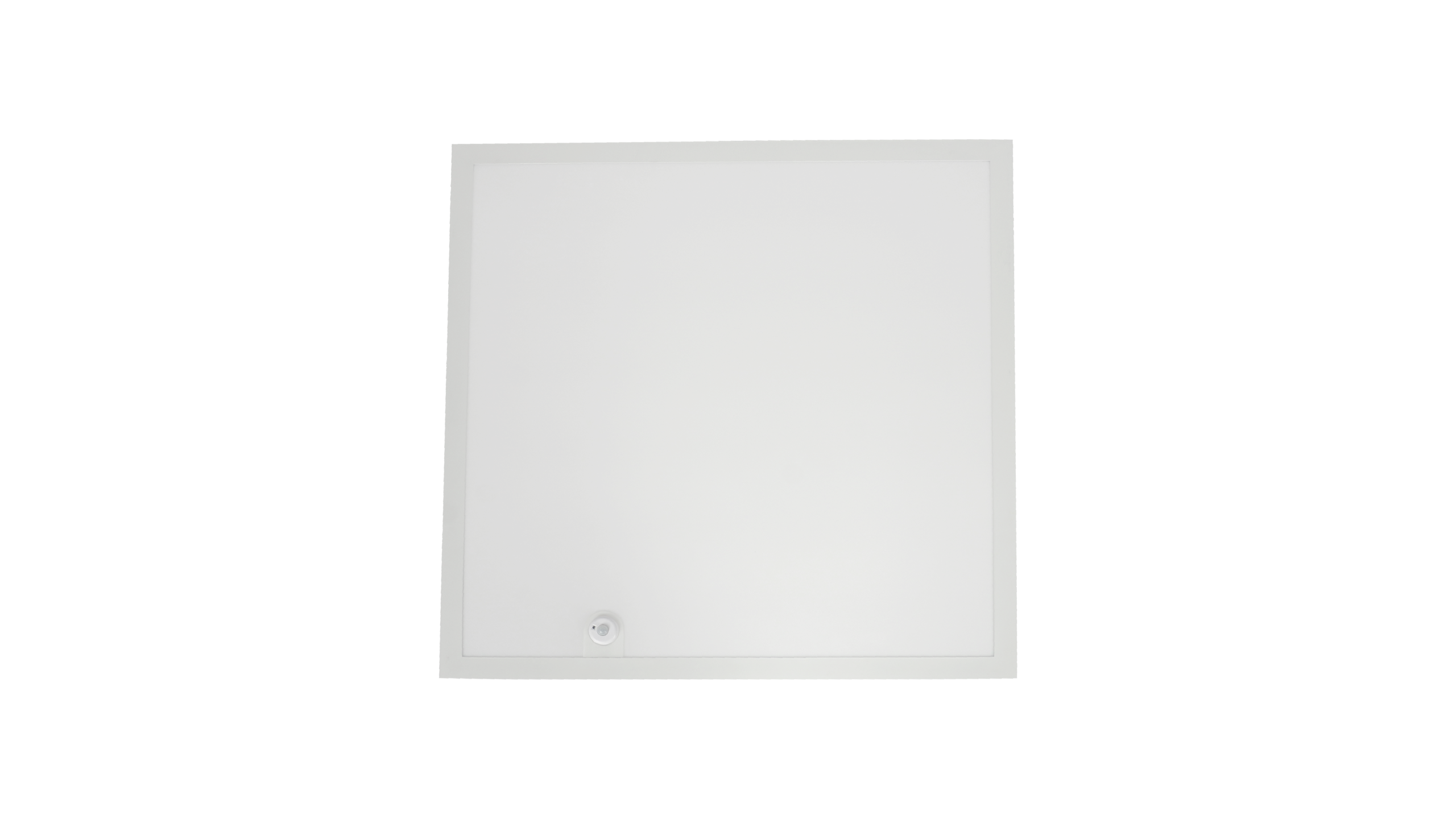

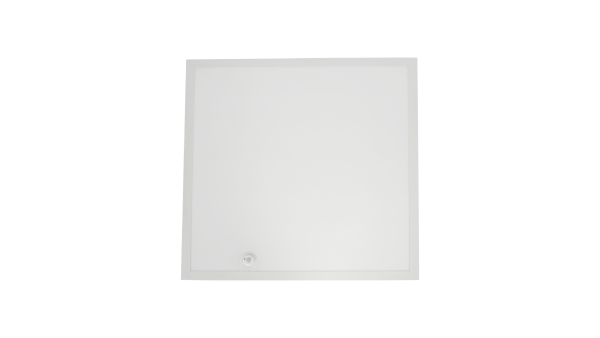

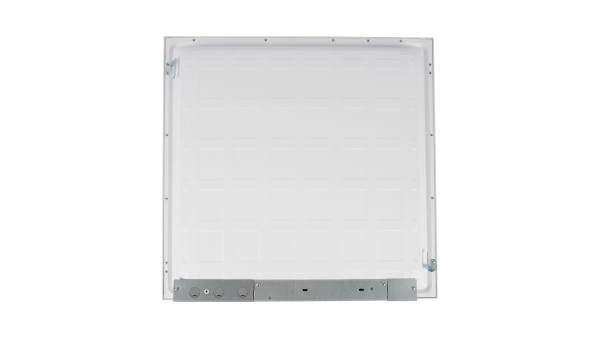

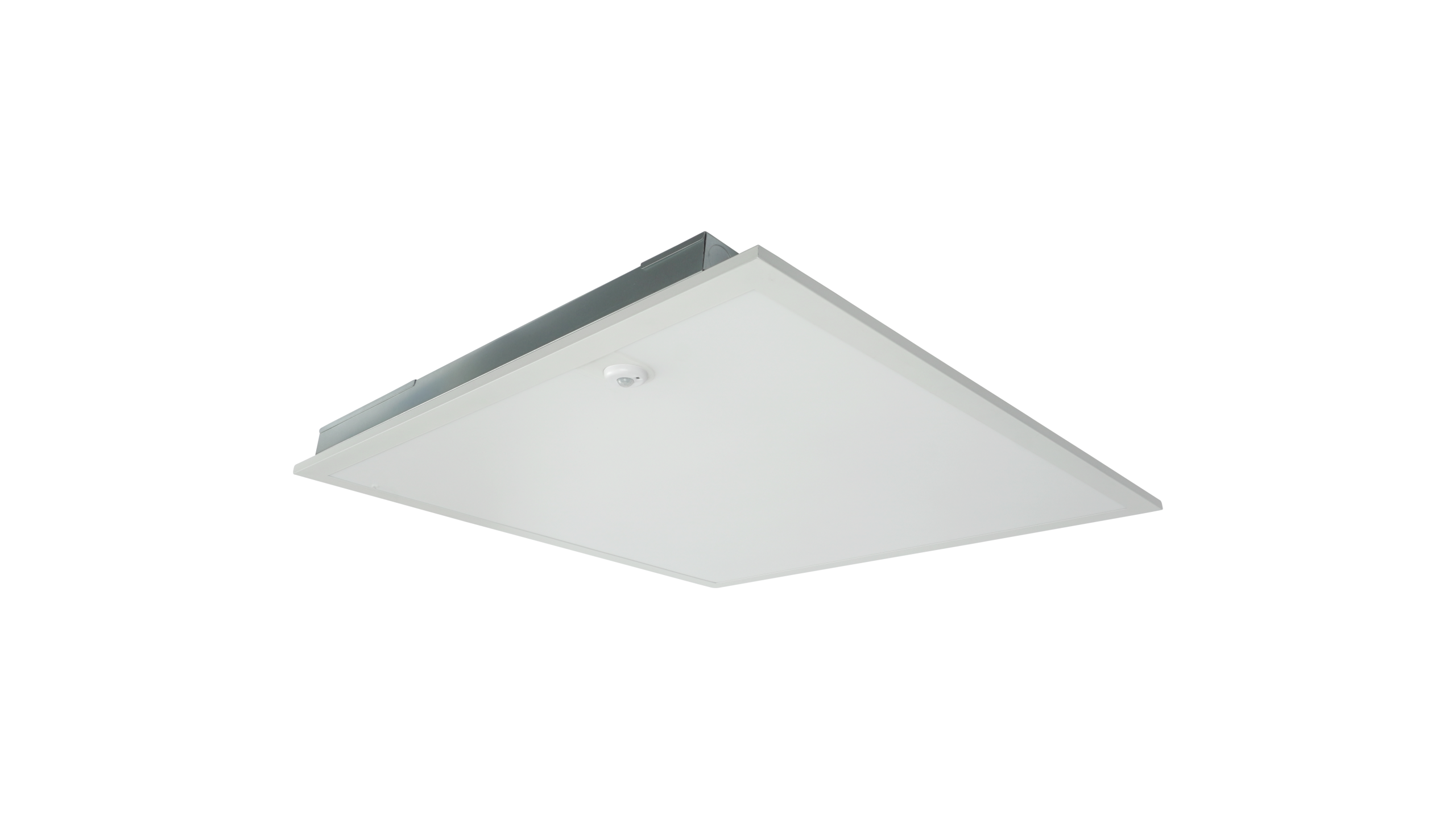

EIKO 14360 - BP1-22PS30P-FCCT-H-CR (New Version)
Manufacturer Code: 14360
View Product AttributesNot the right item? 💡 Contact Us
Hover to zoom, click top-left icon to view
| Cct | 3500k / 4000k / 5000k |
|---|---|
| Cri | 80+ |
| Dimming | 0-10/pwm/resistance |
| Dlc version | Dlc premium |
| Efficacy (lm/w) | 125 lm/w |
| Description | Bp1 backlit panel, 2x2, powerset 30/25/20w, fieldccet 3500/4000/5000k, 120-347v, 0-10v dimming, controls ready |
| Brand | Eiko |
| Ip rating | Ip20 |
| Lumens (lm) | 3,750/3,125/2,500 lm |
| Operating temp range (°f/°c) | -4f to 113f (-20c to 45c) |
| Rated life | 50,000 |
| Replacement for/equivalent | 2 x 17w 2ft t8 |
| Voltage | 120-347vac |
| Wattage | 30/25/20w |
| Item id | Bp1-22ps30p-fcct-h-cr |
| Item type | Fixtures |
| Order code | 14360 |
Stock Availability
Canada Wide Stock: 14010
For larger orders, 14010 item(s) available with a 1-2 week lead time.
Description
This 2x2 LED flat panel (Selectable CCT, Back-Lit, 120–347V) is no longer available.
You can still purchase the updated version from us—it offers the same 2x2 size, back-lit design, and wide input voltage range (120–347V), along with selectable colour temperatures (typically 3500K, 4000K, or 5000K).
The new model is designed to fit standard grid ceilings and provide uniform, high-quality lighting for offices, schools, and commercial spaces.
Note: All LEDs naturally shift in brightness and colour over time. If you install this new panel next to older ones—even if they were originally identical—you may notice slight differences in tone or output. This is normal LED behaviour.
